• Ceiling panels for diffuse or directional ventilation

  • Low pressure loss and energy efficient solution

  • Draught free air distribution
  • Fully integrated in suspended ceiling
  • Low pressure loss
  • Low sound pressure level (as low as <20 dB(A))
  • Low weight
  • Easy installation and maintenance
  • Supplied as single panels or combined into a set of panels
  • Tools not necessary
  • Available in standard and special colours
  • Standard articles for delivery at short notice (48 hours)

FBS Panels

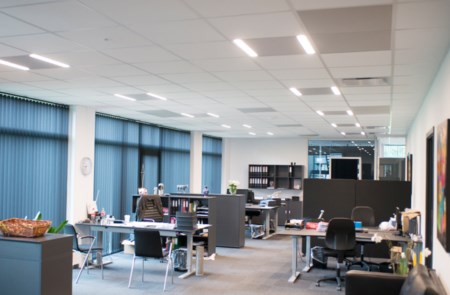

Energy efficient air distribution in schools, office buildings and other comfort areas

FBS Panels are ceiling diffusers based on the patented DFC system by Euro Air. The system operates at a lower pressure than standard ceiling diffusors and it is therefore more energy efficient. The fresh air is evenly distributed across the entire surface of the panel which results in a healthy indoor environment without draught problems. The FBS Panels are made in a Trevira CS quality in fire retardant materials.

The FBS Panels have been developed by Euro Air in Denmark, part of the KE Fibertec group, world leader in fabric ducting. Euro Air has many years of experience in air distribution through tailored fabric ducts and with the invention of FBS Panels we are now also able to offer a flat ventilation panel for e.g. low ceilinged rooms.

Versions

The panels are made in sizes 600x600 mm and 600x1200 mm for standard suspended ceilings and come with a flexible socket Ø160-250 mm. 600x600 panels always come with a socket at the end of the panel. 600x1200 panels come with a socket at the side or at the end of the panel.

Side

Some description

600x1200

End

Some description

600x600 / 600x1200

Combi

Some description

600x1200

Sizes

600x600

1200x600

Types

Type 1 (325)

Some description

Trevira CS, permeability 325

Type 1 (550)

Some description

Trevira CS, permeability 550

Type 1 (775)

Some description

Trevira CS, permeability 775

Type 2 (325)

Some description

Trevira CS, permeability 325, DFC baffle system

Type 2 (550)

Some description

Trevira CS, permeability 550, DFC baffle system

Colours

9010

Standard

9002

Standard

5002

Special colour

9005

Special colour

3020

Special colour

1028

Special colour

Other colours

available on request

Ceiling types

Please note:
Panel must be able to rest on ceiling edge profile.
See list of approved suspended ceiling types.

Some description

Air flow pattern

FBS Panels come in three different variations to fit individual needs. By using the DFC baffles you are able to spread the air over a larger area rather than just below the ceiling.

Type 1

Some description

Some description

Here it is only the thermodynamic that will control how the air will be lead into the room. Cold air will drop directly underneath the textile panel. In terms of heating this is not an ideal solution due to the stratification.

Type 2 (550)

Some description

Some description

Using a mixture of a high permeable material such as the HDC Trevira CS 550 together with the EuroAir patented DFC baffles give a a large area that the air will spread into, shown as Y on the illustration.

The air velocity in Vx, DFC will be a bit bigger than under Vx, Tex, but still possible to keep within the regulations in a high comfort room like a school classroom.

Type 2 (325)

Some description

Some description

Using a mixture of a medium permeable material such as the HDC Trevira CS 325 together with the EuroAir patented DFC baffles gives an even larger area that the air will spread into, shown as Y on the illustration.

The air velocity in Vx, DFC will be a bigger than under Vx, Tex, but still possible to keep within the regulations in a high comfort room like a school classroom.

Washing Instructions

For washing of the panels only the visible part (bottom) is to be removed from the panel. Tools are not needed. The textile material should be washed at 40°C according to the washing instructions for the material.

Some description

Installation

1

Some description

2

Some description

3a

Some description

3b

Some description

Delivery

Some description

When ordering FBS panel 600x1200 Side type 1 (550) and 600x600 End type 1(550) in white or light grey, we offer a 48 hour delivery option. The order is ready for delivery no later than 48 hours upon order confirmation. Please, note that the maximum number of FBS panels per delivery is 10. For other types and/or colours and for larger quantities than 10 panels our general terms of delivery apply.

BIM

FBS panels are available as MagiCAD components for AutoCAD and Revit. The components are available for the standard sizes 600x600 and 600x1200 and for Combi size 600x1200. Both models are made for type 1 and 2 and contain technical calculations.

Some description

Some description
